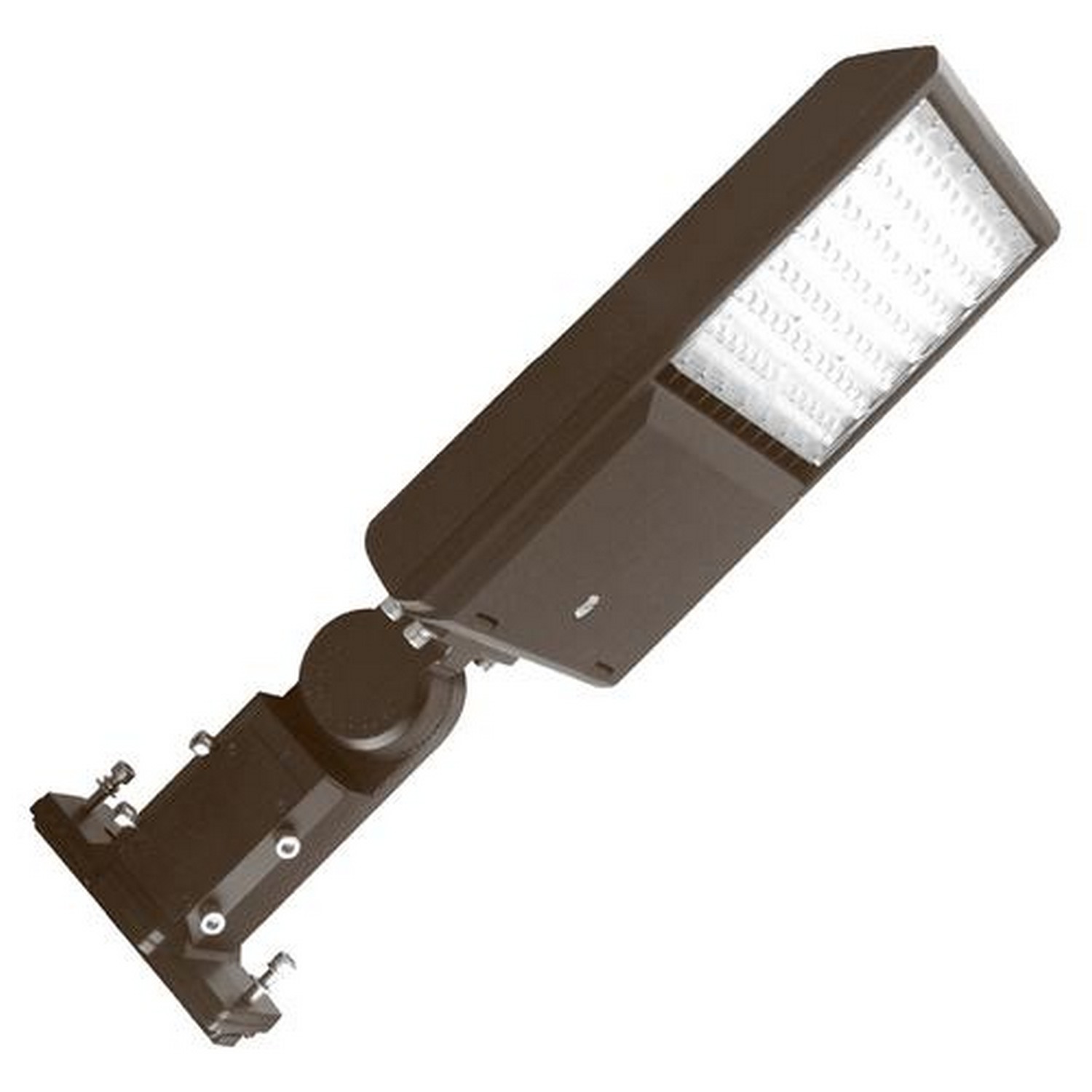

The Beyond LED 151089 LED Area Light is a high-performance outdoor and indoor lighting solution designed to deliver strong illumination with efficient power use. It combines a die-cast aluminum bronze housing with a heat-resistant polycarbonate optical lens to provide durable, weather-resistant operation suitable for a range of exterior and interior environments. The luminaire is engineered for long life and easy serviceability, featuring tool-less, one-man access for maintenance and a built-in universal bracket that fits most mounting configurations. A Meanwell HLG driver ensures reliable power delivery, contributing to stable performance across compatible voltages.
Key design details include high-efficiency LumiLEDs 5050 LEDs and a drive capability of up to 170 lumens per watt, producing 20400 lumens from a 120-watt package at a 5000K color temperature. The unit includes a built-in 10 kV surge protector for transient protection and comes with a 5-year limited warranty. It offers flexible electrical compatibility, with universal 100-277V input and optional 480V, and is DLC Premium and UL listed for integration into compliant lighting projects. An optional 7-pin screw-in photo control is available for dusk-to-dawn operation, enhancing energy savings and control options.
Applications span indoor and outdoor settings where robust, high-output lighting is needed—such as parking areas, loading docks, walkways, and building perimeters. Consider compatibility with existing controls and mounting locations when planning installation, and note the unit’s IP65 rating, indicating protection against dust and water jets from all directions. Packaged as a single unit, it’s ready for field installation with the provided mounting provisions and serviceability features that reduce maintenance time.
Features:
- High Efficiency LumiLEDs 5050 LEDs
- Ultra thin sleek design
- Up to 170 lumens per watt
- Meanwell HLG driver
- Built-in 10kV surge protector
- Tool-less, one-man serviceability
- Universal mounting bracket
- CONSUMPTION:
- 120W
- COLOR TEMPERATURE:
- 5000K
- LUMEN:
- 20400Lm
- CRI:
- 70
- POWER FACTOR:
- 0.9
- WARRANTY:
- 5 YEARS LIMITED
- UL & DLC:
- YES
- IP RATING:
- IP65
- HOUSING:
- Bronze/Aluminum
- OPERATINGTEMPRATURE:
- -4°F TO 122°F
- APPLICATION:
- INDOOR / OUTDOOR
- Package Size:
- Each
