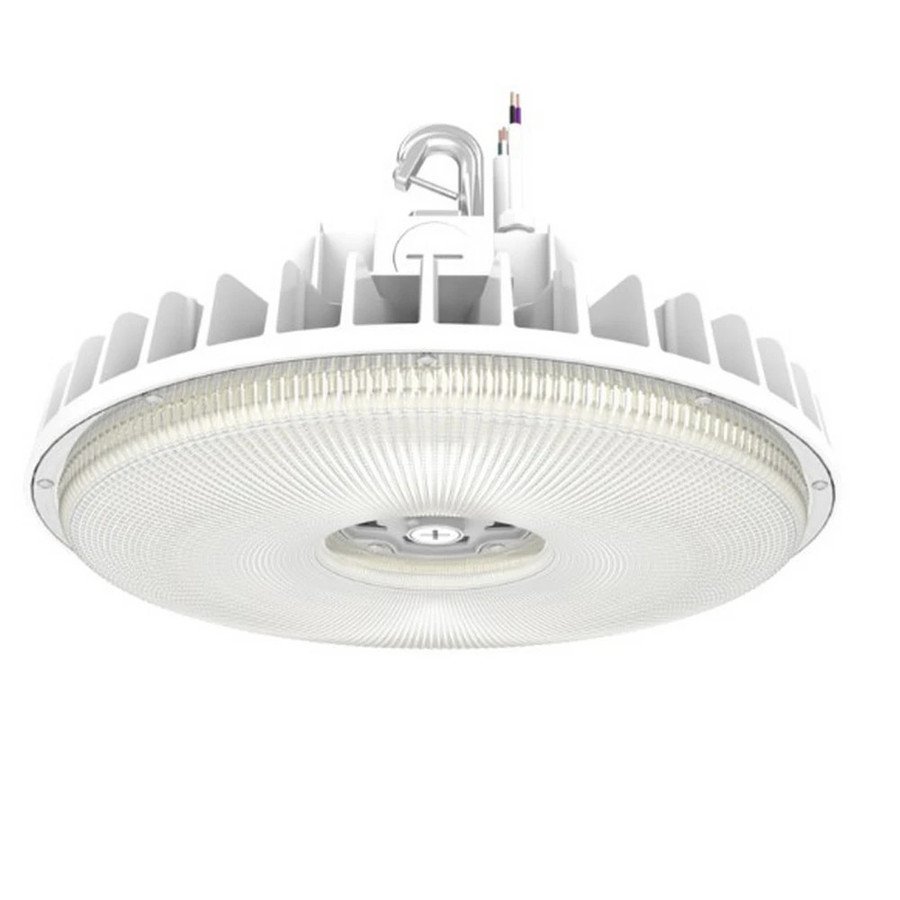

The Litetronics High Bay Circular Pro is a versatile, field-adjustable LED high bay designed to adapt to a range of warehouse, manufacturing, retail, and gymnasium applications. With selectable wattage and color temperature, a single fixture can cover varied lighting requirements, reducing SKU complexity on the jobsite while delivering high-efficiency illumination. The product is built around an all-in-one 120–480V driver and a durable polycarbonate prismatic lens, supporting broad voltage compatibility and robust light distribution. It carries corrosion-resistant coating and IP65/IP67-like protection in its feature set, contributing to dependable performance in challenging environments. The fixture provides up to 167 lumens per watt and offers 100,000-hour rated life with a 10-year warranty, establishing a long-term lighting solution for facilities that demand reliability.
Construction highlights include a stainless steel hook standard and optional swivel-yoke mounting, together with a 10-foot cord and provisions for an emergency battery backup where needed. The design supports 0–10V dimming and plug-in sensor options, enabling integration with smart controls and mobile app compatibility for system tuning and maintenance. An impact- and weather-resilient option set allows operation across indoor and damp locations with a broad operating temperature range, making it suitable for a variety of industrial spaces.
For installation and ongoing maintenance, the fixture’s lightweight form factor and plug-in sensor capability help simplify commissioning and future upgrades. Compatible mounting options (hook, pendant, or swivel-yoke) expand placement flexibility, while the wide voltage band and high lumen output support both retrofit and new-build projects. When selecting accessories or sensor configurations, verify that the chosen setup aligns with the specified 120–480V driver and the unit’s intended ambient conditions to ensure optimal performance over the life of the fixture.
Features:
- Selectable Watt & CCT
- All-in-One 120-480V
- DLC 5.1 Premium
- 160-167 LPW
- IP67 & IP69K Rated
- IK08 Rated
- 100,000 Hour Rated Life & 10-year Warranty
- Watts:
- 75|115|150
- Voltage:
- 120-277
- Average Rated Life:
- 100,000
- Luminaire Lumens:
- 12000|18400|24000
- CRI:
- >80
- Color Temp:
- 3000K|4000K|5000K
- Operating Temp:
- -40°F - 131°F
- Power Factor:
- >95
- Warranty:
- 10 Years
- Beam Spread:
- 100°
- Lumens/Watt:
- 160
- Suitable for Damp Locations:
- Yes
- Package Size:
- Each
