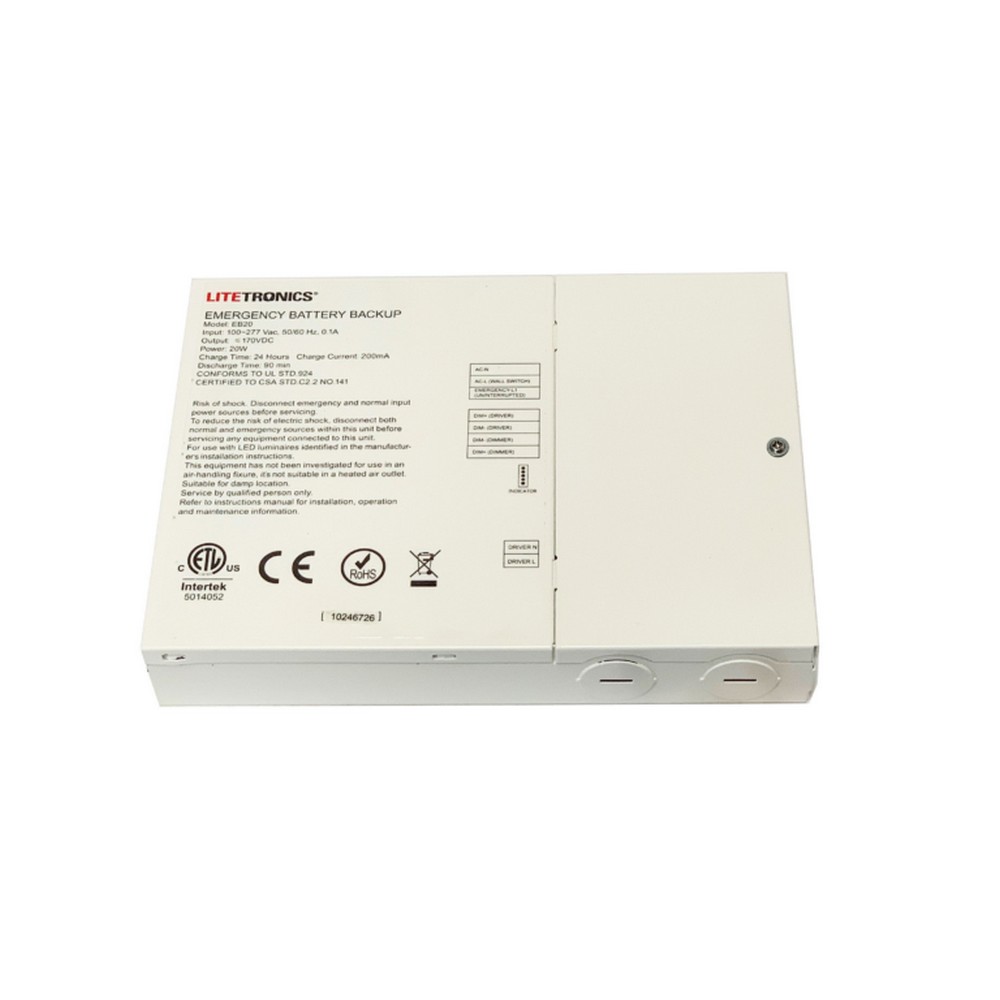

Litetronics EB20 20W Emergency Battery Backup For High Bays, Fixtures And Retrofits

The Litetronics EB20 is an emergency battery backup designed to provide reliable 90 minutes of illumination to compatible LED high bays, fixtures, and retrofit configurations during power outages. Engineered to support higher-output fixtures up to 200W, it helps ensure that required emergency lighting levels are maintained so occupants can safely exit the space under reduced visibility. The unit includes automatic monthly self-testing, which verifies readiness, and an indicator module that visually communicates operational status.

Designed for versatile installation, the EB20 offers two mounting options. When used with grid ceiling solutions, the indicator module can be recessed into an adjacent panel. For drywall or open-ceiling installations, the module can be directly attached to the side of the fixture via adhesive. Both configurations include status-indicating lights to confirm current operation. The backup unit is ETL-listed for damp locations and is rated for a long service life, with a 50,000-hour expected life and a 5-year warranty, underscoring its suitability for commercial and industrial settings where dependable emergency lighting is critical.

In practice, the EB20 is well-suited for spaces equipped with Litetronics LED high bays and retrofits requiring compliant emergency illumination. Users should account for the 20W nominal input of the backup electronics in the context of the fixture’s overall power requirements and ensure that the controlled load remains within the 200W guidance. The product ships as a single unit and is designed for straightforward maintenance and testing, with optional remote-control testing to simplify periodic verification while keeping the emergency system prepared for readiness and compliance.

Features:

• 20W emergency backup
• Input voltage 120-277V
• Average rated life 50000 hours
• Operating temperature range 32°F to 122°F
• 5-year warranty
• FCC, ETL listed
