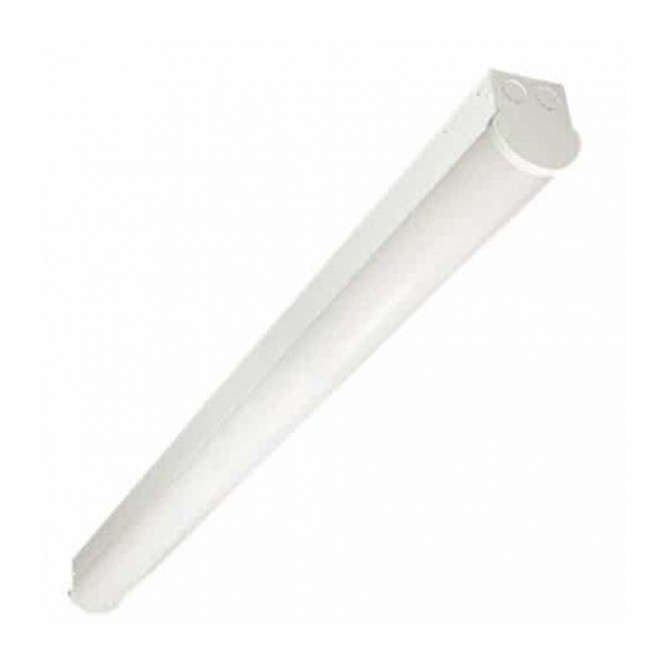

The TCPGPS4UZDB850K is a strip-style LED fixture designed to deliver bright, energy-efficient general illumination for a variety of commercial and industrial spaces. It utilizes a ribbed frosted white diffuser to shield the LED diodes and minimize glare while producing a consistent, daylight-balanced 5000K light. With an 18-watt core, this fixture achieves about 2,300 lumens, offering a favorable lumen-per-watt ratio for long-term operating efficiency. It is rated for operation on 120–277V, and the 0–10V dimming capability allows finer control of light levels when paired with compatible controls. The design also supports direct-linking with other TCP fixtures via an available connector, enabling scalable layouts from a single power run, which can simplify installation in larger spaces.
In terms of durability and installation practicality, this model carries a damp location rating, expanding its suitability to covered indoor environments where humidity or occasional moisture may be present. The fixture is built to withstand a wide operating temperature range, listed at -20°F to 122°F, which helps ensure reliable performance in areas with temperature variation. With a long rated life of 50,000 hours and a five-year warranty, it is positioned as a low-maintenance lighting solution that reduces replacement cycles and routine service intervals. The DLC Premium listing indicates compatibility with certain rebate and efficiency programs, which can be a consideration for project budgeting and compliance.
The TCP GPS-series fixture is compatible with standard electrical feeds within its voltage range and is designed for general illumination across offices, hallways, retail spaces, and other non-specialized environments. When planning installation, consider the need for a compatible dimming control and the potential for linkable configurations to minimize wiring runs. Packaged as individual units, these fixtures are ready for field mounting and can be integrated into existing linear layouts where high-quality, daylight-rendering light is desired.
Features:
- 120-277V operation
- 0-10V dimmable
- Linkable design
- Ribbed frosted white diffuser
- Damp location rated
- DLC 5.0 Premium
- 50,000 hour rated, 5-year warranty
- DLC ID:
- PJGR8LRB
- Manufacturer Part Number:
- TCPGPS4UZDB850K
- Manufacturer:
- TCP
- Lumens:
- 2,300
- Lumens Per Watt:
- 127.78
- Wattage:
- 18 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- 5000K
- Dimmable:
- 0-10V
- Lamp Type:
- LED
- Color Tone:
- Daylight
- Rated Hours:
- 50,000
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- DLC Listed:
- Premium
- Special Features:
- Damp Location, Linkable
- Warranty:
- 5 Years
- Package Size:
- Each
