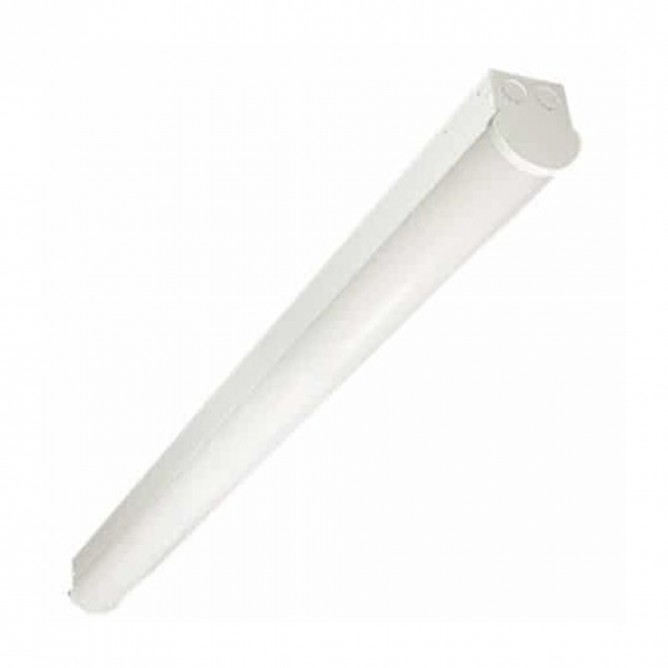

The TCPGPS4UZDA840K is a 48-inch LED strip fixture designed to provide energy-efficient general illumination for utility and workspace settings. It delivers about 4,200 lumens with a color temperature of 4000K, producing a neutral white light suitable for a variety of tasks without excessive glare. The fixture uses a ribbed, frosted white diffuser to protect the diodes and yield a smooth, uniform light field, helping to reduce harsh hotspots in occupied areas. With a rated life of 50,000 hours and a 5-year warranty, this fixture emphasizes long-term performance in commercial and industrial spaces.
A key feature is its 120-277V operating range and 0-10V dimmability, allowing flexible integration with standard electrical systems and compatible dimming controls where implemented. The unit is damp location rated, which makes it appropriate for mildly humid environments such as utility rooms, basements, and wash-down-adjacent areas, provided moisture exposure remains within the rating. The fixture is designed to be linkable with other TCP LED strip fixtures using an individual connector piece sold separately, enabling scalable lighting layouts without excessive wiring runs. Its DLC 5.0 Premium listing indicates compliance with performance and efficiency standards that some clients require for incentives and rebates.
For installation considerations, the TCPGPS4UZDA840K is a 32-watt LED solution with high efficacy, suitable for replacing legacy linear fluorescents in mid- to large-format applications. When planning layouts, account for the 48-inch length and ensure power distribution and dimming circuitry are compatible with 120-277V supply and 0-10V control lines. Maintenance should follow standard LED fixture care, including periodic cleaning of the diffuser and checking connection points in linkable configurations to ensure consistent operation across fixtures.
Features:
- 120-277V operation
- 0-10V dimmable
- Linkable for extended runs
- Ribbed frosted white diffuser lens
- Damp location rated
- DLC 5.0 Premium
- 50,000 hour rated life
- DLC ID:
- PDY9PRHV
- Manufacturer Part Number:
- TCPGPS4UZDA840K
- UPC:
- 762148074595
- Manufacturer:
- TCP
- Lumens:
- 4,200
- Lumens Per Watt:
- 131.25
- Wattage:
- 32 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- 4000K
- Dimmable:
- 0-10V
- Lamp Type:
- LED
- Color Tone:
- Neutral White
- Rated Hours:
- 50,000
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- DLC Listed:
- Premium
- Special Features:
- Damp Location, Linkable
- Warranty:
- 5 Years
- Package Size:
- Each
