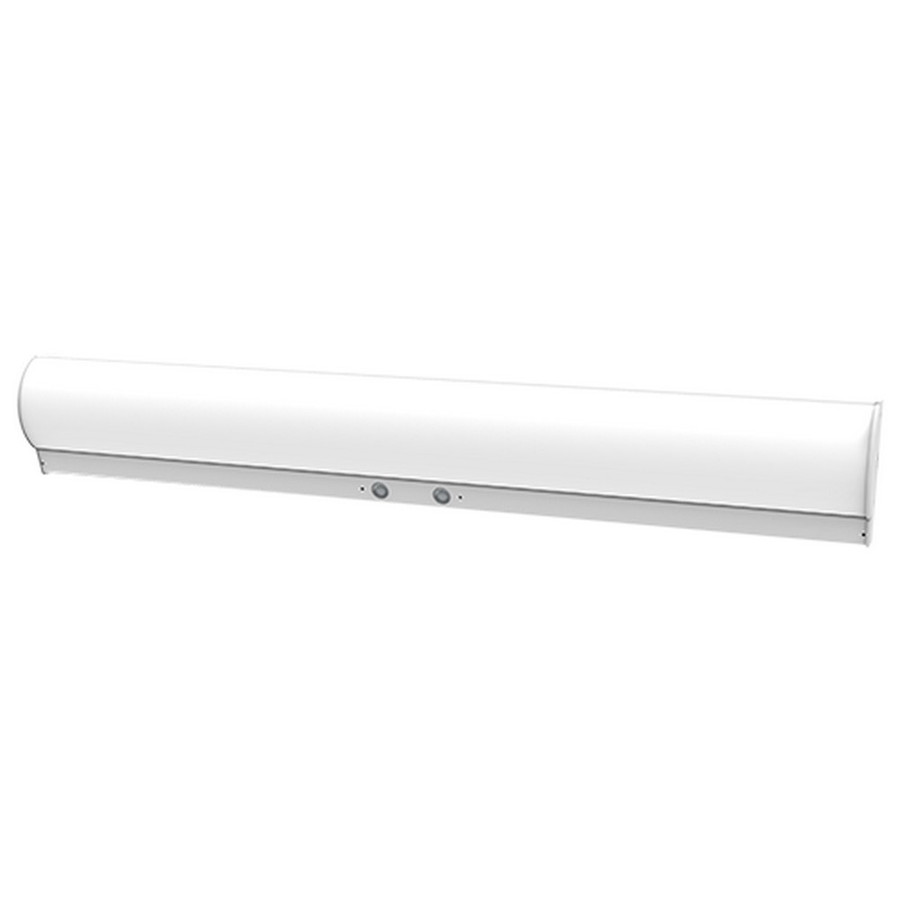

This stairwell fixture is available in 2-foot and 4-foot lengths, with a 7.5-inch width designed to cover existing footprints without the need for painting. It can be mounted on walls or ceilings and comes in two housing options: the Cavern (CV) model, featuring a .060-inch aluminum body, cast aluminum end plates, post-paint finish, and an option for tamper-resistant screws; and the Cavern Lite (CVL) model, which has a .040-inch aluminum body with a baked-on pre-paint enamel finish. Both models come in a standard white finish with optional custom colors. An ultrasonic sensor option is available for maximum sensing range, and the fixture includes an impact-resistant extruded frosted acrylic lens. With high efficacy up to 157 lumens per watt and color temperature options ranging from 3000K to 5000K, this luminaire offers excellent lighting quality with a color rendering index (CRI) greater than 80. It features a 010V dimmable driver for 100% to 10% dimming, supports 120277V universal voltage, and has optional integral emergency battery backups. The fixture is ADA-compliant, comes with a 5-year warranty, and is ETL listed for damp and dry locations. Additionally, it is DesignLights Consortium Premium qualified, ensuring high performance and energy efficiency.
Save with The Safety Source
At The Safety Source, we keep our prices low without compromising the quality our customers expect from us. Place your order through our secure website with confidence. If you would like assistance with your order, please call us at 1-866-688-7233 or message us online now. Get the best deal with The Safety Source.
Product Features:
- 2ft and 4ft Length Stairwell Fixture
- 7.5? Width to Cover Existing Footprints (No Painting)
- Wall or Ceiling Mount
- White Standard Finish with Optional Custom Colors
- Ultrasonic Sensor Option Provides for Maximum Sensing Range
- Impact Resistant Extruded Frosted Acrylic Lens
- High EfficacyUp to 157 lm/W
- 3000K5000K CCTs
- >80 Color Rendering Index (CRI)
- Calculated L70 >100,000 hrs
- 010V Dimmable Driver (100%10%)
- 120277V Universal Voltage
- Optional Integral Emergency Battery Backups
- ADA Compliant Luminaire
- 5 Year Warranty
- ETL Listed for Damp & Dry Location
- DesignLights Consortium Premium Qualified Luminaire
Downloads:
Product Specifications:
| Input Voltage | 120-277V |
|---|---|
| Color Temp | 4000K |
| Watt | 16 |
| Lumens | 2327 |
| Lumen Per Watt | 145 |
| CRI | >80 |
| Finish | White |
| Lens Type | Frosted Acrylic |
| ETL Listed | Yes |
| DLC | Premium |
| Operating Temperature Range | -4ºF125ºF |
| Average Rated Life | 100,000 hrs |
| Warranty | 5 Years |
| Package Size | Each |
- Input Voltage:
- 120-277V
- Color Temp:
- 4000K
- Watt:
- 16
- Lumens:
- 2327
- Lumen Per Watt:
- 145
- CRI:
- >80
- Finish:
- White
- Lens Type:
- Frosted Acrylic
- ETL Listed:
- Yes
- DLC:
- Premium
- Operating Temperature Range:
- -4ºF125ºF
- Average Rated Life:
- 100,000 hrs
- Warranty:
- 5 Years
- Package Size:
- Each
