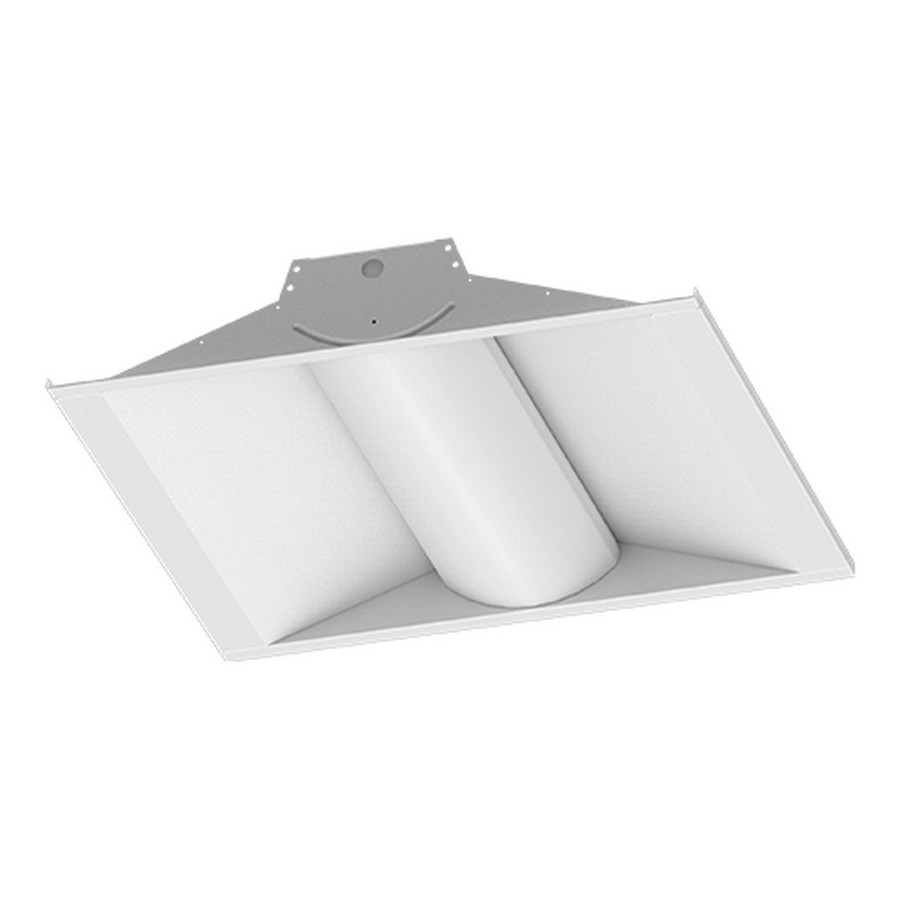

ILP VOLA22-76L-U-40 Volumetric LED Troffer 4000K, 56 Watt, 7555 Lumens

The ILP VOLA22-76L-U-40 is a volumetric LED troffer designed to deliver high-quality, architecturally refined lighting in commercial and institutional spaces. Built around a lightweight aluminum body with a matte white finish, this luminaire combines a refined aesthetic with durable construction. A high-transmission extruded PMMA frosted acrylic lens helps ensure uniform illumination across the 1×4, 2×2, and 2×4 configurations, while offering a wide distribution suitable for general ambient lighting needs. The design supports flexible mounting—recessed, surface, or flange mount—with air-return options to help maintain appropriate airflow and thermal management in ceiling plenums.

Key performance characteristics include a luminous output range of approximately 2,400 to 10,000 delivered lumens and a high efficacy of up to 151 lm/W, depending on configuration and drive characteristics. The VOLA22-76L-U-40 features a 0-10V dimmable driver and is available in color temperatures from 3000K to 5000K with CRI options of 80 or 90, allowing designers to tailor white light quality to the application. The fixture is ETL listed and has earned the DesignLights Consortium Premium qualification, signaling compatibility with higher standards for efficiency and performance. With a stated L70 life of over 100,000 hours, the luminaire is suited for long service life in demanding environments.

Practical considerations include the fixture’s 120-277V input, standard 5-year warranty with an optional 10-year extension, and availability in a range of lumen outputs to meet different room sizes and zoning schemes. This troffer is designed for applications where a clean, minimal profile is desired without sacrificing light quality or control capabilities, and its advanced wireless control options offer flexibility for modern, connected lighting systems.

Features:

• Architecturally designed volumetric troffer
• Lightweight aluminum matte white finish body
• High transmission extruded PMMA frosted acrylic lens
• Recessed, Surface or Flange Mount
• Air Return Options
• Advanced Wireless Controls Options
• 1×4, 2×2, 2×4 sizes
