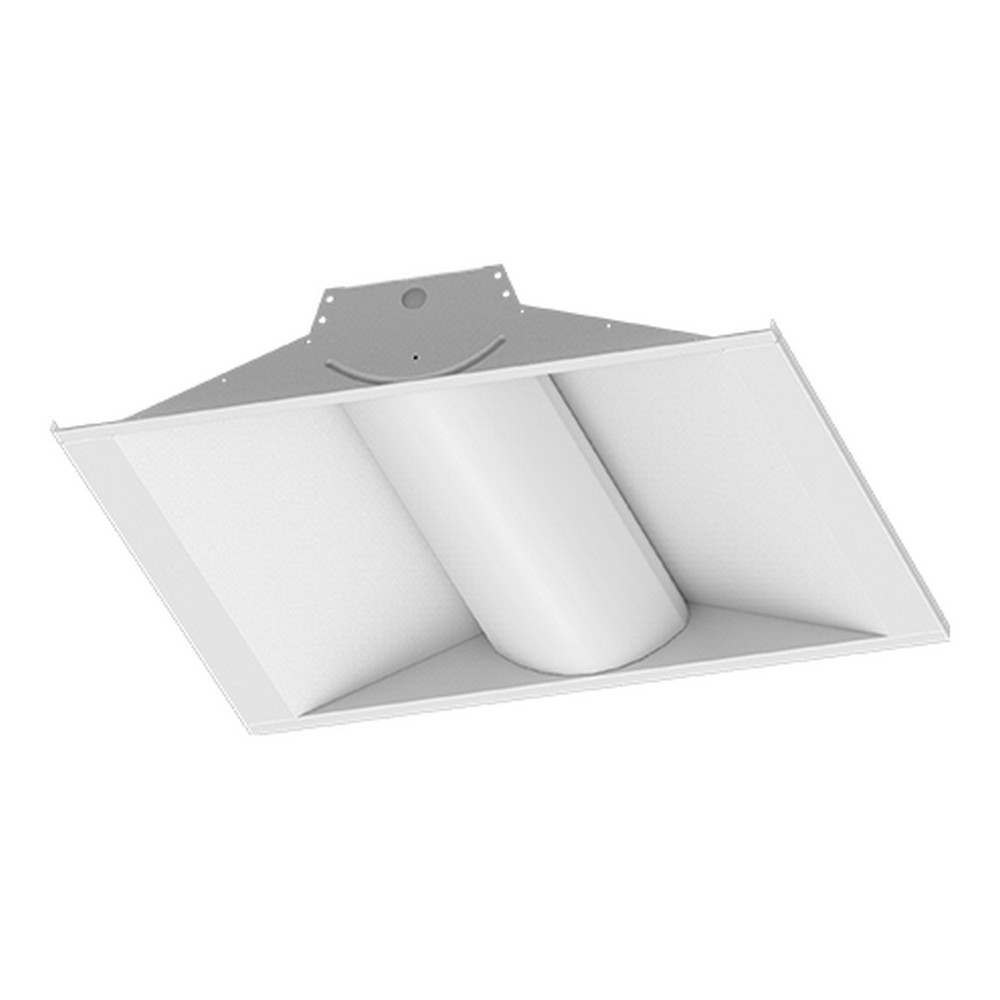

The ILP VOLA22-50L-U-40 is an architecturally designed volumetric LED troffer intended for versatile ceiling installations. Built with a lightweight aluminum body finished in matte white and paired with a high-transmission extruded PMMA frosted acrylic lens, this luminaire provides a clean, modern appearance while delivering substantial light output. The unit is offered in 1x4, 2x2, and 2x4 configurations and supports recessed, surface, or flange mounting as well as air return options, making it suitable for a variety of ceiling designs and ventilation considerations. It is designed to operate efficiently at a 4000K color temperature with options for 3000K–5000K and CRI levels of 80 or 90, delivering up to 4990 lumens in the specified 37-watt configuration, and achieving high efficacy up to 151 lm/W. The fixture includes a 0-10V dimmable driver to support simple lighting control schemes and can be integrated with advanced wireless controls for enhanced functionality.
Features:
- Architecturally designed volumetric troffer
- Lightweight aluminum matte white finish body
- High transmission extruded PMMA frosted acrylic lens
- Recessed, Surface or Flange Mount; Air Return Options
- Advanced Wireless Controls Options
- Available in 1×4, 2×2, 2×4 sizes
- 2,400–10,000 Delivered Lumens; Up to 151 lm/W
- 4000K CCT; 80/90 CRI options
- 0-10V Dimmable; L70 >100,000 hrs
- ETL Listed; DLC Standard; DLC Premium Qualified
- 5 Year warranty (std); 10 Year optional
- Input Voltage:
- 120-277V
- Color Temp:
- 4000K
- Watt:
- 37
- Lumens:
- 4990
- Lumen Per Watt:
- 136
- CRI:
- >80
- Finish:
- White
- ETL Listed:
- Yes
- DLC:
- Standard
- Average Rated Life:
- 100,000 hrs
- Warranty:
- 5 Years
- Package Size:
- Each
