Name: ILP LANCE14-29L-U-40 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 22 Watt, 2892 Lumens
Brand: ILP
SKU: LANCE14-29L-U-40
Price: 134.79 USD
Availability: InStock

ILP LANCE14-29L-U-40 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 22 Watt, 2892 Lumens

ILP

SKU:

LANCE14-29L-U-40

$134.79

/ Each

Weight:

12.00 LBS

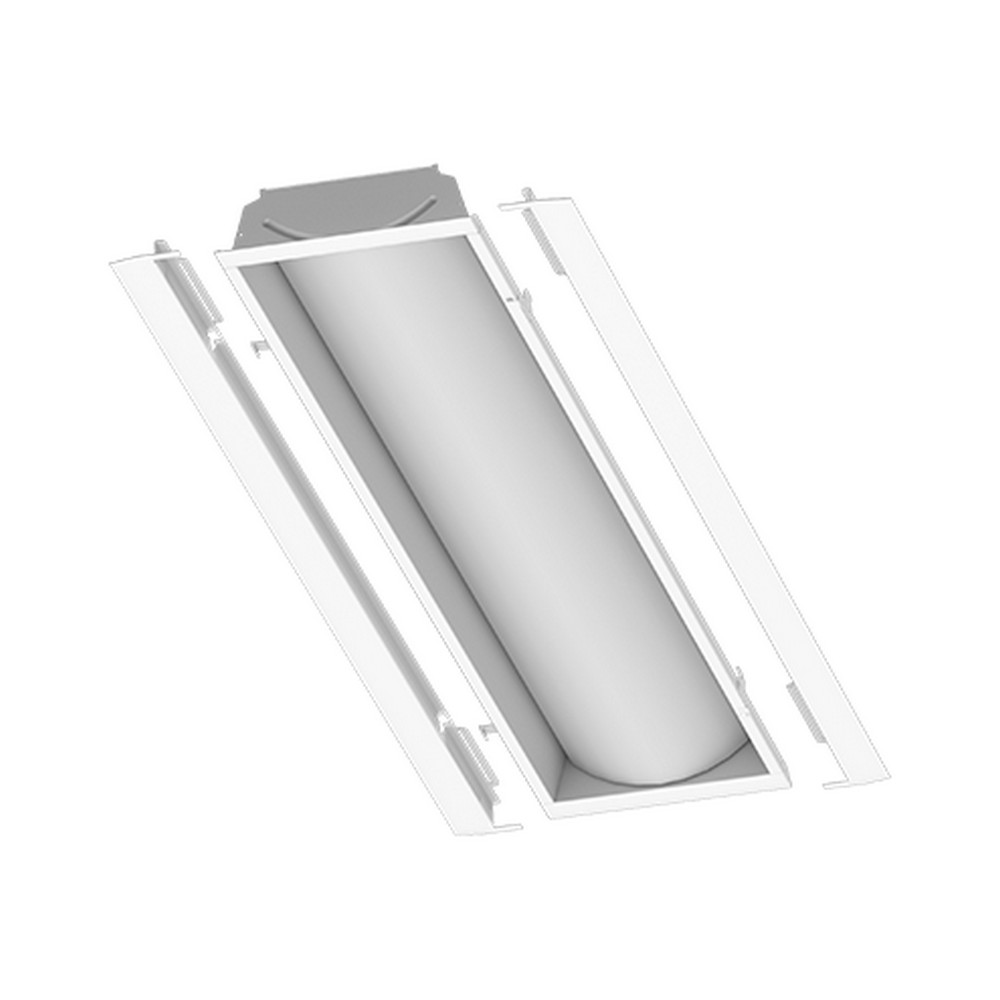

The ILP LANCE14-29L-U-40 is a luminaire retrofit solution designed for recessed troffer installations. This one-piece unit combines compact mounting versatility with a lightweight aluminum body finished in matte white, paired with a high-transmission extruded PMMA frosted acrylic lens to deliver evenly distributed light in retrofit applications. The kit supports modern controls and installation efficiency, featuring two universal mounting brackets and an average installation time under three minutes, helping reduce on-site labor. It is available in common grid configurations including 1×4, 2×2, and 2×4 options, providing flexibility for replacing legacy troffers while maintaining consistent performance across space types. With a 22-watt driver delivering up to 2,892 lumens at a 4,000K color temperature, this fixture achieves strong efficacy, and it offers 80 and 90 CRI options to suit different tasks and visual requirements.

This retrofit kit is designed for versatility and reliability in commercial lighting programs. It includes a 0-10V dimmable driver and provides optional air return configurations and wireless control capabilities to fit into advanced lighting ecosystems. The unit is rated for long service life, with an average rated life of up to 100,000 hours, and it carries ETL listing for UL1598C. It is DLC Premium qualified, aligning with programs that emphasize energy efficiency and performance. The standard warranty is five years, with an option to extend to ten years for enhanced protection. Overall, the LANCE14-29L-U-40 is a robust choice for replacing existing troffers with a modern, efficient LED solution that supports varied installation needs and controls.

Features:

One-piece troffer retrofit kit for recessed lighting
Average install time < 3 minutes
Lightweight aluminum matte white finish
High transmission PMMA frosted acrylic lens
0-10V dimmable driver
4000K CCT, 80+ CRI
ETL Listed for UL1598C, DLC Premium Qualified

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 22
Lumens:: 2892
Lumen Per Watt:: 138
CRI:: >80
Finish:: White
ETL Listed:: Yes
DLC:: Premium
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What materials or construction does the product feature?

The kit features a lightweight aluminum body with a matte white finish and a high‑transmission extruded PMMA frosted acrylic lens.

What are the key technical specifications for this LANCE14-29L-U-40 LED retrofit kit?

22W LED troffer retrofit delivering 2,892 lumens at 4000K, with 120–277V input and over 100,000-hour life.

What is the warranty coverage for this retrofit kit?

The standard warranty is 5 years, with an optional 10-year warranty available.

What are the installation features or ease‑of‑use characteristics?

It is a one-piece unit with two universal mounting brackets and an average installation time of less than three minutes.

What applications or installation environments is this product intended for?

It is designed for recessed troffer retrofit lighting applications and is ETL listed for UL1598C, with DesignLights Consortium Premium qualification.
