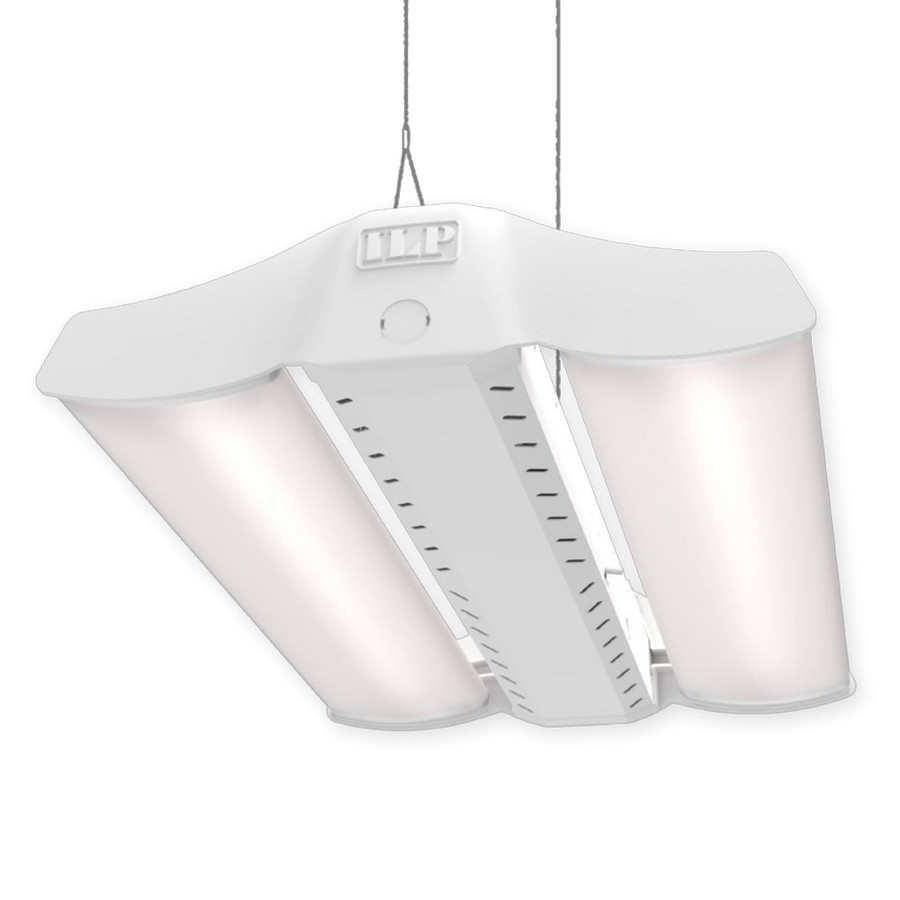

Name: ILP EDV2-8L-U-50-ND Endeavour 2.0 LED High Bay 5000K, 53 Watt, 8508 Lumens
Brand: ILP
SKU: EDV2-8L-U-50-ND
Price: 214.28 USD
Availability: InStock

ILP EDV2-8L-U-50-ND Endeavour 2.0 LED High Bay 5000K, 53 Watt, 8508 Lumens

ILP

SKU:

EDV2-8L-U-50-ND

$214.28

/ Each

Weight:

9.00 LBS

The ILP Endeavour 2.0 LED High Bay is a robust, American-manufactured lighting solution designed for demanding industrial spaces. With a 53-watt LED engine delivering approximately 8,508 lumens at 5000K, this fixture provides high-quality, bright white illumination suitable for warehouses, manufacturing floors, and other large interiors. The design emphasizes durability, featuring an aluminum body with steel channel reinforcement and curved polycarbonate end caps, while offering both wide and narrow distribution options to tailor light coverage to your space.

Key construction and capability details include an IK10-rated rugged build intended to withstand demanding environments, damp-location suitability per ETL Listing, and a long-lived performance profile with an average-rated life of 100,000 hours. A 0-10V dimmable driver (100%–10%) supports flexible lighting control, and the unit accommodates standard ambient temperatures from -40°F to 131°F, with an elevated option up to 149°F for hotter spaces. The Endeavour is designed for straightforward maintenance and installation, featuring tool-less hinged driver access and dual-mounting options via V-clips for chain or cable hanging. It also supports uplight configurations to help maximize room illumination beyond the fixture’s direct footprint.

For compatibility and performance considerations, the fixture is available in a white finish and is UL-listed for damp locations. It carries DesignLights Consortium Premium qualification, which distinguishes high-performance LED luminaires and can influence energy-efficiency incentives and project specs. The product is backed by a standard five-year warranty, with a ten-year option, and carries a L80>100,000 hours performance expectation to help estimate long-term maintenance needs in facilities planning.

Features:

Sleek curved polycarbonate end caps
Aluminum body with steel channel for rigidity
Tool-less hinged driver access
Wide & narrow distributions
V-clips for dual point hanging
0-10V dimmable driver
ETL Listed for Damp Location, DLC Premium Qualified

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 5000K
Watt:: 53
Lumens:: 8508
Lumen Per Watt:: 161
CRI:: >80
Finish:: White
ETL Listed:: Yes
Operating Temperature Range:: -40F to 131F
IP Rating:: IP5X
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What materials and construction features does the ILP EDV2-8L-U-50-ND Endeavour 2.0 LED High Bay use?

The product features an aluminum body with a steel channel for added rigidity and curved polycarbonate injection molded end caps. It has white and black finish options and is designed with a tool-less hinged driver access for maintenance.

What are the key technical specifications for this fixture, including power, color temperature, and lumen output?

It operates at 120-277V with a wattage of 53 W, color temperature of 5000K, and delivers 8508 lumens (approximately 161 lm/W).

Does this high bay light have any notable performance or warranty details?

It is ETL Listed for Damp Location, offers a 5-year warranty (standard) with a 10-year warranty option, and has an L80 life calculation of over 100,000 hours.

What installation and mounting features are included or supported for this fixture?

The unit includes V-Clips for dual point chain or cable hanging and supports wide and narrow distributions. It also features uplight options to enhance room illumination.
