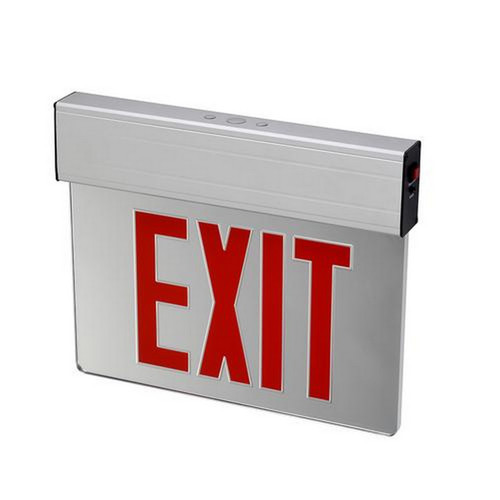

The Beyond LED 151309 LED Exit Light Edge Lit Red Double Sided is a compact, wall-mounted emergency exit sign designed to provide highly visible guidance during power outages. This edge-lit sign uses a red, double-sided display to ensure visibility from multiple viewing angles, helping occupants locate the nearest exit quickly in emergencies. Its LED array consists of twelve red SMD LEDs, delivering bright, energy-efficient illumination while consuming approximately 4 watts of output power. The unit is constructed from flame-retardant, high-impact resistant injection-moulded thermoplastic, contributing to durability in demanding environments. It is designed for emergency operation lasting a minimum of 90 minutes, which supports reliable functionality during initial stages of an incident.
Electrical compatibility includes dual voltage operation at 120/277 VAC, broadening installation options across different building configurations. The internal battery is a 3.6V, 500 mAh NiMH pack, with a maximum charging current up to 206 mA and a typical charging time around 24 hours. The discharge time is specified to be at least 1.5 hours when AC power is unavailable, ensuring a dependable independent light source during an outage. The product is UL listed, indicating it has undergone safety testing in accordance with applicable standards.
This model is suited for use in commercial spaces where clear exit signaling is required, such as hallways, stairwells, and egress routes. Consider installation in locations that benefit from a double-sided, edge-lit configuration to improve visibility from multiple approaches. Maintain standard maintenance practices for emergency lighting: periodic inspection, battery replacement as needed, and ensuring the fixture remains clean and unobstructed to maximize visibility.
Features:
- Output Power: 4W
- Dual voltage operation: 120/277Vac
- Minimum 90 minutes emergency operation
- 3.6V 500mAh Ni-MH battery
- Flame retardant, high-impact resistant housing
- Edge-lit, double-sided red LED exit indicator
- 12 red SMD 2835 LEDs
- Input Voltage:
- 120-277V
- Battery:
- 3.6V/500mAH NI-MH
- Safety Report:
- UL Listed
- Max Charge Current (mA):
- 206MA MAX
- Charging Time:
- 24H
- Discharge Time:
- ≥1.5H
- LED:
- SMD 2835 12PCS RED LED
- Package Size:
- Each
