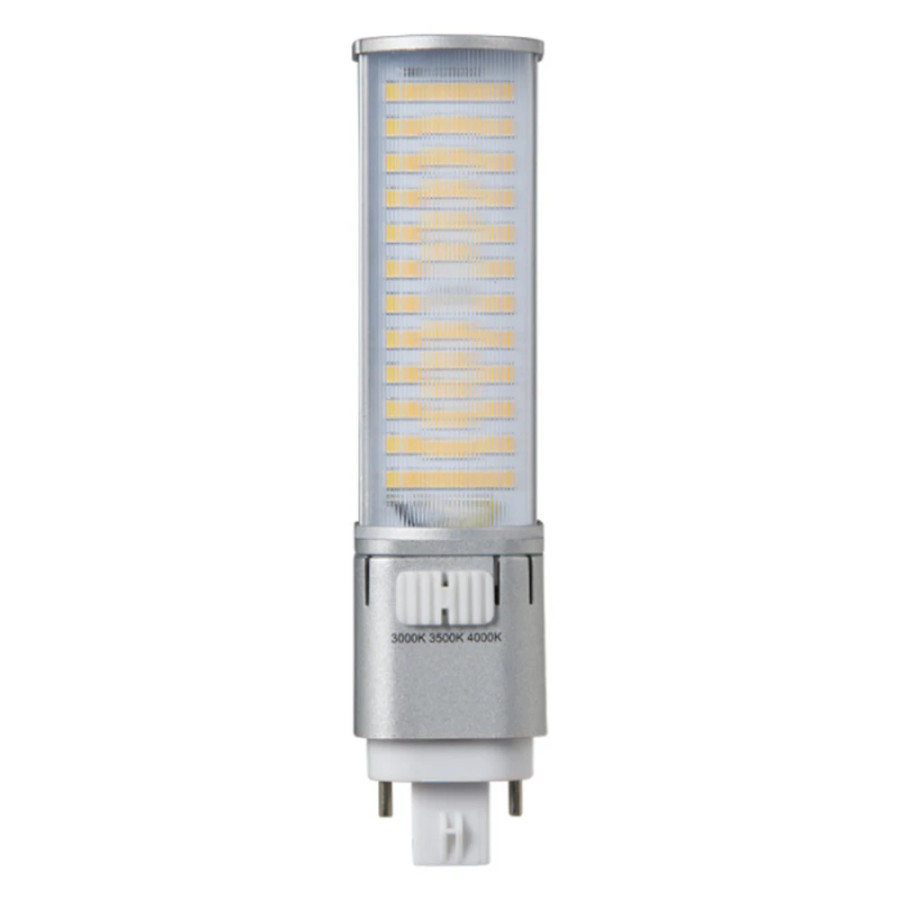

The Light Efficient Design LED-7324-FC2-G4 is a 9-watt LED PL retrofit lamp designed to replace traditional CFLs in G24q/GX24q 4-pin sockets. It supports horizontal installations and is suitable for recessed downlights, wall sconces, and surface mount fixtures. The lamp offers an adjustable color temperature option, selectable between 2700K, 4000K, and 5000K, and delivers up to 1,400 lumens of high-quality light while operating with either the existing ballast or a standard 120-277V line voltage. This hybrid functionality enables flexible retrofitting in environments where ballast compatibility is a consideration, reducing wiring changes and downtime.
Constructed for longer service life, the LED-PL lamp is rated for 50,000 hours of operation and is damp location rated, which makes it suitable for non-enclosed indoor applications where moisture is a factor. A notable practical feature is the CCT select switch on the lamp itself, allowing quick adjustment to match space requirements or preferences without swapping components.
In terms of compatibility and physical specs, the lamp is built to fit 4-pin G24q/GX24q sockets and is intended for horizontal installation, which aligns with common downlight and wall fixture orientations. The compact form factor measures approximately 5.7 inches in length and 1.3 inches in width, and it is designed for use in fixtures that accommodate PL-type LED replacements rather than enclosed fixtures. For planning and maintenance, the 50,000-hour rating provides a long service life, and the lamp is built to operate across a wide input range when using line voltage, simplifying selection in mixed lighting environments.
Features:
- Hybrid installation: ballast-dependent or 120-277V line voltage
- Horizontal installation for PL lamps
- Compatible with 4-pin G24q/GX24q sockets
- On-lamp CCT select: 2700K, 4000K, 5000K
- Damp location rated
- 50,000 hour rated life
- LED PL retrofit lamp for 9W use
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- LED-7324-FC2-G4
- UPC:
- 197810004097
- Lumens:
- 1,400 Lumens
- Wattage:
- 9 Watts
- Input Voltage:
- Ballast Dependent, 120-277V, 120-277V or Ballast Dependent
- Color Temperature:
- 2700K, 4000K, 5000K
- Lamp / Base Type:
- G24Q
- Lamp Shape:
- PL
- Rated Hours:
- 50,000 Hours
- Min Operating Temp:
- -40 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable
- Length:
- 5.7
- Width:
- 1.3
- Package Size:
- Each
