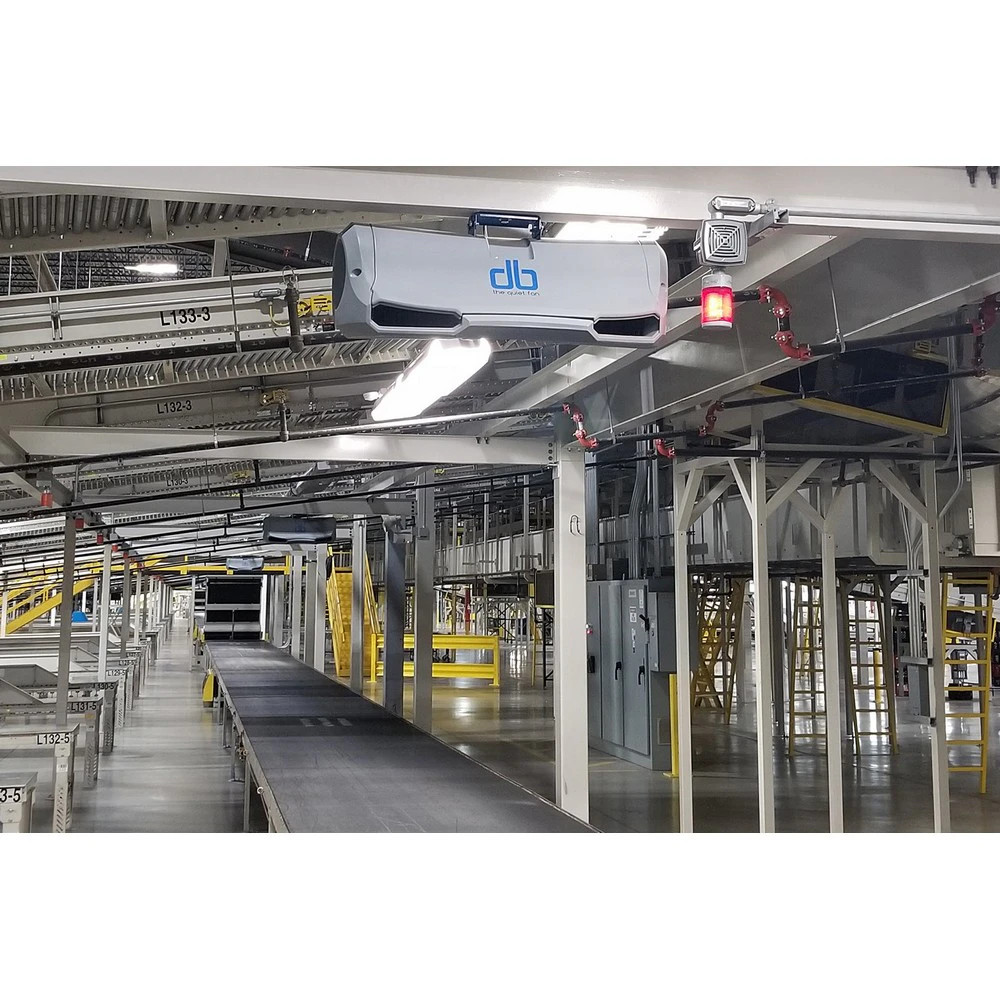

The Patterson DB-A-W/O-SWITCH-230V is a compact, high-velocity air mover designed for industrial pick-module environments, dock areas, and spaces with low ceilings. Its low-profile form delivers a strong, evenly distributed column of air while occupying minimal floor space, helping to free up headroom without compromising air movement. This model is described as a quiet high-velocity fan, with performance geared toward reducing noise in busy fulfillment and distribution settings where communication and productivity matter as much as air volume.
Constructed with a 6.25 in. by 6.5 in. blower wheel set within a high-impact polypropylene housing, the unit integrates a galvanized-aluminum blower assembly and laser-cut steel inlet with a durable HDPE outlet. The system uses a half-horsepower motor to drive the dual blower configuration, achieving a coverage area of up to 2700 ft² and a reported noise level of 60 dB at 3 ft, which supports quieter operation in shared workspaces. The design emphasizes minimal energy consumption while delivering a powerful air stream suitable for ventilating and circulation in compact spaces.
This model is specified as a 230V unit and ships without a switch, making it compatible with systems and controls already present in industrial facilities or with field-installed wiring. It includes OSHA-compliant finger guards and a robust overall construction intended for continuous use in demanding environments. When planning installation, consider the stated coverage, mounting options, and power requirements to ensure the fan complements existing HVAC or material-handling setups without creating interference with workflow or safety protocols.
Features:
- Quiet, Noise Controlled operation
- Powerful column of air for effective ventilation
- Low-profile design for space-constrained areas
- Minimal energy consumption
- Yoke mount for versatile installation
- OSHA-compliant finger guards for safety
- Blower wheels:
- 6.25” x 6.5”, GalvAlum
- Fan housing:
- High Impact Polypropylene (HIPP)
- Finger guards:
- OSHA Compliant, Laser-Cut Steel Inlet and HDPE Outlet
- Power cord (115V Only):
- 12’ Pigtail
- RPM:
- 1725
- Decibels:
- 60 @ 3’
- Coverage:
- 2700 ft²
- Package Size:
- Each
