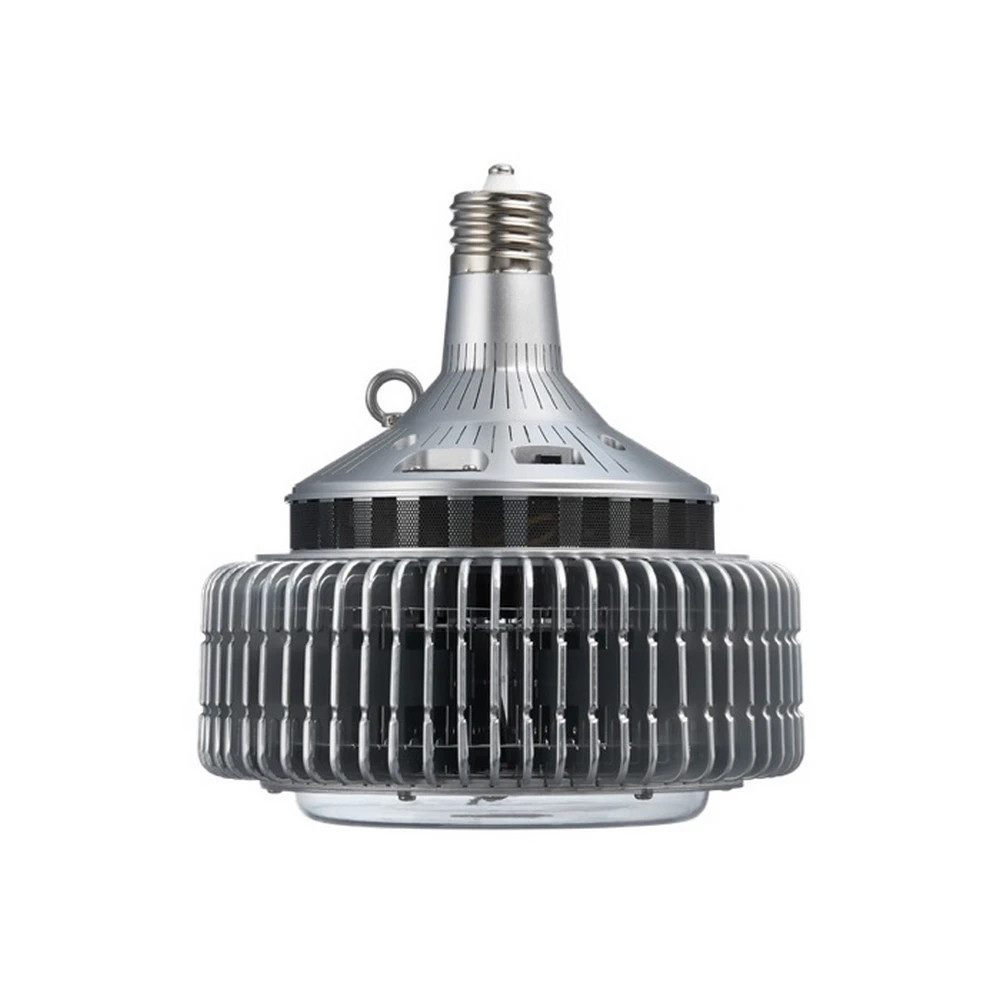

The Light Efficient Design LED-8232M345D-HV is a high bay retrofit lamp designed to replace 400 W HID fixtures with a 140 W LED solution. It delivers up to 19,500 lumens and offers selectable color temperatures, enabling you to switch between 3000 K, 4000 K, or 5000 K to match application needs. The lamp is built for use in enclosed fixtures and damp environments, and it is protected against insects and dust, making it suitable for demanding industrial settings. A 277–480 V input range supports a variety of upstream power configurations, simplifying installation in facilities with different electrical supplies while maintaining consistent light output.
Key construction and features include a mogul EX39 base, a dimmable design accessible via an adjustable side dial, and a USA-designed LED driver. Pretested and potted drivers are burn-in tested and protected against vibration and moisture, contributing to reliability in fluctuating conditions. The design emphasizes thermal management through dynamic temperature control and advanced active cooling, which supports extended luminaire life and sustained brightness. With a rated life of 50,000 hours and an operating temperature span from -40 to 113 degrees Fahrenheit, this fixture is engineered for durable, long-term performance in challenging environments.
When planning upgrades or retrofits, consider this lamp for facilities with high bay lighting needs where energy efficiency, long life, and color temperature flexibility are priorities. The enclosure-rated construction and environmental protections help ensure continued operation in dusty or humid spaces, while the compact form coupled with an 8.7-inch diameter and 10.5-inch height facilitates installation in existing housings. This product is intended to be used as a direct replacement for 400 W HID high bays, offering a path to lower wattage without sacrificing lumen output.
Features:
- 277-480V operation
- CCT-selectable: 3000K, 4000K, 5000K
- Dimmable via side-adjust dial
- Replaces 400W HID high bays
- EX39 Mogul base
- USA designed and specified LED driver
- Dynamic temp control with active cooling
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- LED-8232M345D-HV
- UPC:
- 844006077679
- Lumens:
- 19,500 Lumens
- Wattage:
- 140 Watts
- Input Voltage:
- 277-480V
- Color Temperature:
- 3000K, 4000K, 5000K
- Lamp / Base Type:
- EX39 Mogul
- Rated Hours:
- 50,000 Hours
- Equivalent:
- 400W HID
- Min Operating Temp:
- -40 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable, Enclosed Fixture Rated
- Diameter:
- 8.7
- Height:
- 10.5
- Package Size:
- Each
