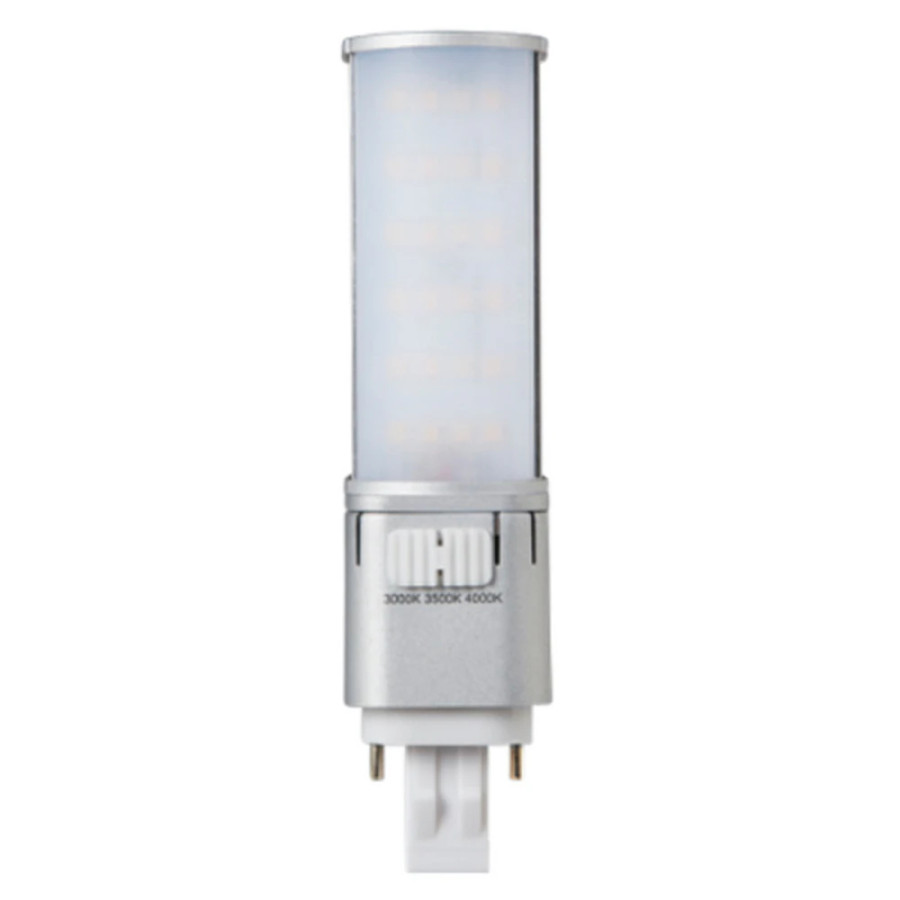

Light Efficient Design LED-7312-FC1-G4 is a compact, plug-in LED retrofit lamp designed to replace 26 W fluorescent CFLs in GX23-2 based fixtures. This 7-watt PL-style LED delivers up to 950 lumens and supports selectable color temperatures, giving you flexibility to tailor ambiance from 3000K through 3500K to 4000K in the same unit. Built for horizontal installations, it is suitable for recessed downlights, wall sconces, and surface mount fixtures where a GX23-2 base is specified, and it operates on standard line voltage from 120 to 277 volts. The lamp is rated for damp locations and is designed for a long service life, with an expected 50,000 hours of operation, helping reduce maintenance and replacement frequency in appropriate applications.
Constructed to replace CFL technology with an LED solution, this lamp aims to maintain similar form factor and compatibility while leveraging LEDs’ energy efficiency. The PL shape and GX23-2 base are kept intact to simplify retrofits in compatible luminaires. The product’s 120-degree beam angle provides a broad distribution suitable for general lighting in downlights and wall-mounted fixtures, while the CRI and exact color rendering specifications are not listed in the provided data. While the exact mounting orientation and installation considerations are noted as horizontal only, users should ensure their fixtures conform to this requirement for proper operation.
When planning a retrofit, consider the lamp’s dimming capability (not specified), operating temperature range (minimum −4°F is listed for operating conditions), and the need to verify fixture suitability for damp locations. The lamp’s compact dimensions (approximately 5.4 inches long and 1.3 inches wide) and GX23-2 compatibility help determine fit within existing housings and sockets. Each unit is packaged individually and is intended for direct replacement in compatible PL luminaires, supporting energy-efficient upgrades without changing fixture form.
Features:
- 120-277V operation
- CCT selectable: 3000K, 3500K, or 4000K
- Horizontal installation
- GX23-2 socket compatibility
- Replaces 26W fluorescent lamps
- Damp location rated
- 50,000 hour rated life
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- LED-7312-FC1-G4
- UPC:
- 197810018896
- Lumens:
- 950 Lumens
- Wattage:
- 7 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- 3000K, 3500K, 4000K
- Lamp / Base Type:
- GX23
- Lamp Shape:
- PL
- Rated Hours:
- 50,000 Hours
- Beam Angle:
- 120 Degrees
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable
- Length:
- 5.4
- Width:
- 1.3
- Package Size:
- Each
