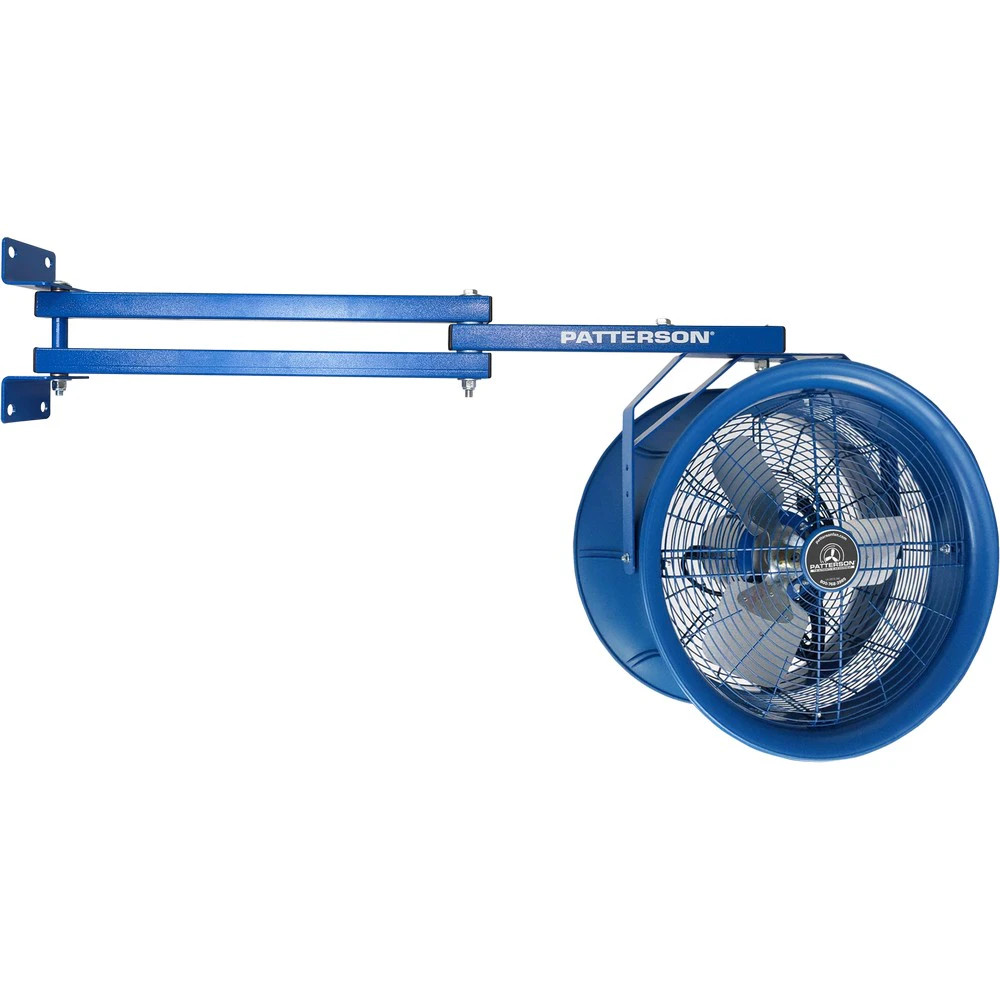

The Patterson Fan TC42-14B is a high-velocity floor或wall-mounted industrial fan designed to move substantial volumes of air in factory or warehouse settings. Its 14-inch, three-blade propeller works with a patented Venturi-designed barrel and side air inlets to project and entrain air across extended distances, aiding ventilation in aisles, pick modules, workstations, and shipping zones. The unit integrates a durable housing built from high-impact polypropylene and heavy-gauge steel, and utilizes a maintenance-free, direct-drive motor with sealed bearings, providing reliable operation with minimal upkeep.
Key construction features include OSHA-compliant steel finger guards for safety and a 12-foot power cord option when used with 115V power, with multiple voltage compatibility spanning 115V to 460V to support varied facility electrical infrastructure. The TC42-14B is available with multiple mounting configurations (eight options) and can be paired with optional oscillator kits to broaden airflow coverage. Its performance package includes a 2600 CFM output, 1/4 HP, and a 60-foot air throw capability, suitable for medium-sized work areas and staging zones. The unit is designed for environments where consistent air movement is necessary to assist in temperature control, condensation management, and overall workspace comfort.
Practical considerations for buyers include selecting the correct voltage and mounting arrangement to fit the facility layout, noting the 14-inch diameter propeller and 63.1–73.1 dB noise range depending on distance from the outlet. With a weight around 35 pounds and a 2-year warranty, this Patterson fan targets durable, low-maintenance performance in demanding industrial spaces. This description reflects the product’s documented features and intended applications as provided by the manufacturer.
Features:
- 14" diameter, 3-blade galvalume propeller
- High-impact polypropylene housing with heavy-gauge steel construction
- Venturi-designed barrels for efficient airflow
- Direct-drive, maintenance-free motor with sealed bearings
- Multiple voltages: 115V–460V
- Eight mounting options and optional oscillator kits
- OSHA-compliant steel finger guards
- Propeller:
- 14” Diameter, 3-Blade Galvalum, 37°
- Fan Inlet/Outlet:
- High-Impact Polypropylene
- Finger Guards:
- OSHA-Compliant
- Power Cord (115V Only):
- 12’ Length (Switch Optional)
- RPM:
- 1725
- Decibels:
- 63.1 @ 20’ - 73.1 @ 3’
- Coverage:
- 1800 ft²
- Warranty:
- 2 Years
- CFM:
- 2600
- HP:
- 1/4
- Width:
- 20”
- Depth:
- 16”
- Air Throw:
- 60’
- Weight:
- 35 lbs
- Package Size:
- Each
