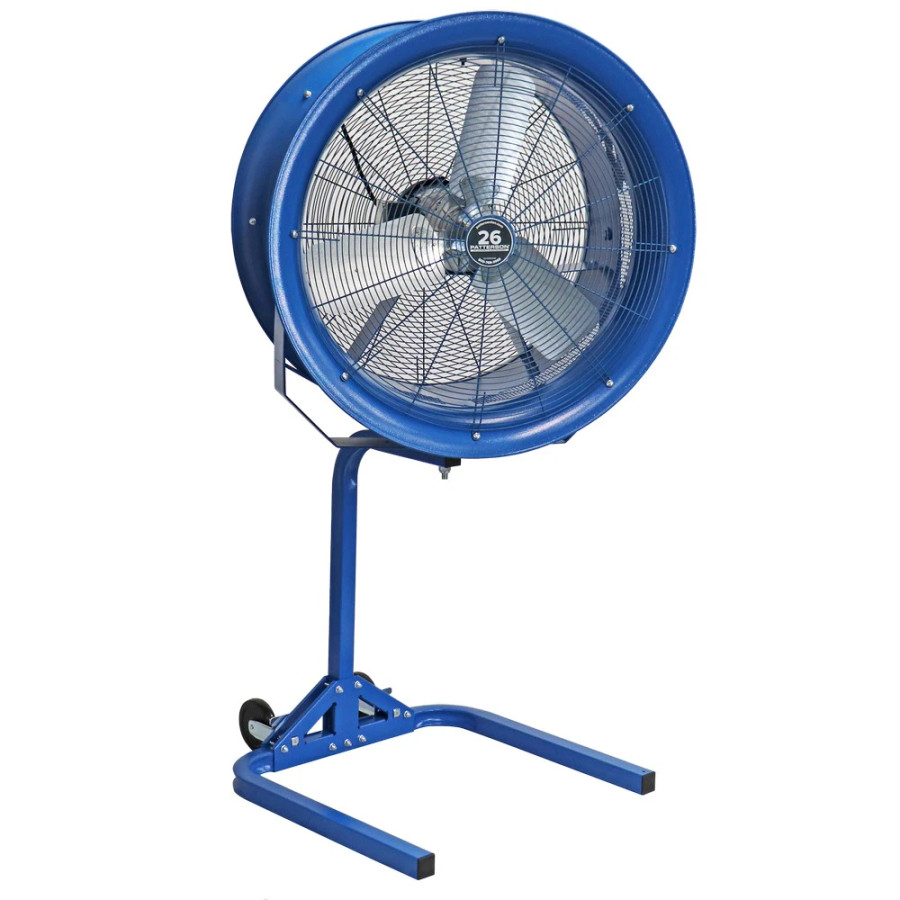

The Patterson PS26A High Velocity Fan is a rugged, portable airflow solution designed for demanding factory and warehouse environments. With a 26-inch high-velocity impeller and a compact 33"W x 18.5"D footprint, this unit moves air across large areas, helping to improve ventilation, aid cooling at workstations, and assist in condensation control within aisles, pick modules, and staging zones. The design emphasizes durability, combining a high-impact polypropylene housing with heavy-gauge steel construction to withstand tough floor-wloor use while maintaining long-term performance.
Key features include patented Venturi-designed barrels and side air intakes that optimize airflow projection and entrainment, delivering substantial air throw up to 150 feet. The PS26A uses a maintenance-free, direct-drive motor with sealed bearings and controls in a totally enclosed configuration, with a standard 12-foot power cord for 115V operation (additional voltages up to 460V are supported in other configurations). An OSHA-compliant steel finger guard provides added protection in busy industrial settings, and the unit can be configured with multiple mounting options and optional oscillator kits to tailor airflow to specific areas. The standard RPM is 1800, with a 1200 RPM optional setting to match noise and air velocity needs, and it carries a 2-year warranty for assurance of sustained performance.
Ideal applications include open areas such as shipping zones, staging areas, and large workspaces where improving air circulation can contribute to a healthier, cooler environment and potentially reduce energy costs associated with climate control. When selecting this model, consider the required voltage, desired air throw distance, and whether you need features such as an oscillator kit or multiple mounting options to position the unit for maximum coverage. This model is listed under the PATPS26A catalog entry, and packaging is stated as a single unit per package.
Features:
- 26" diameter, 3-blade design
- High-impact polypropylene housing with steel construction
- Venturi-designed barrels for efficient airflow
- OSHA-compliant steel finger guards
- Maintenance-free direct-drive motors with sealed bearings
- Voltage options from 115V to 460V

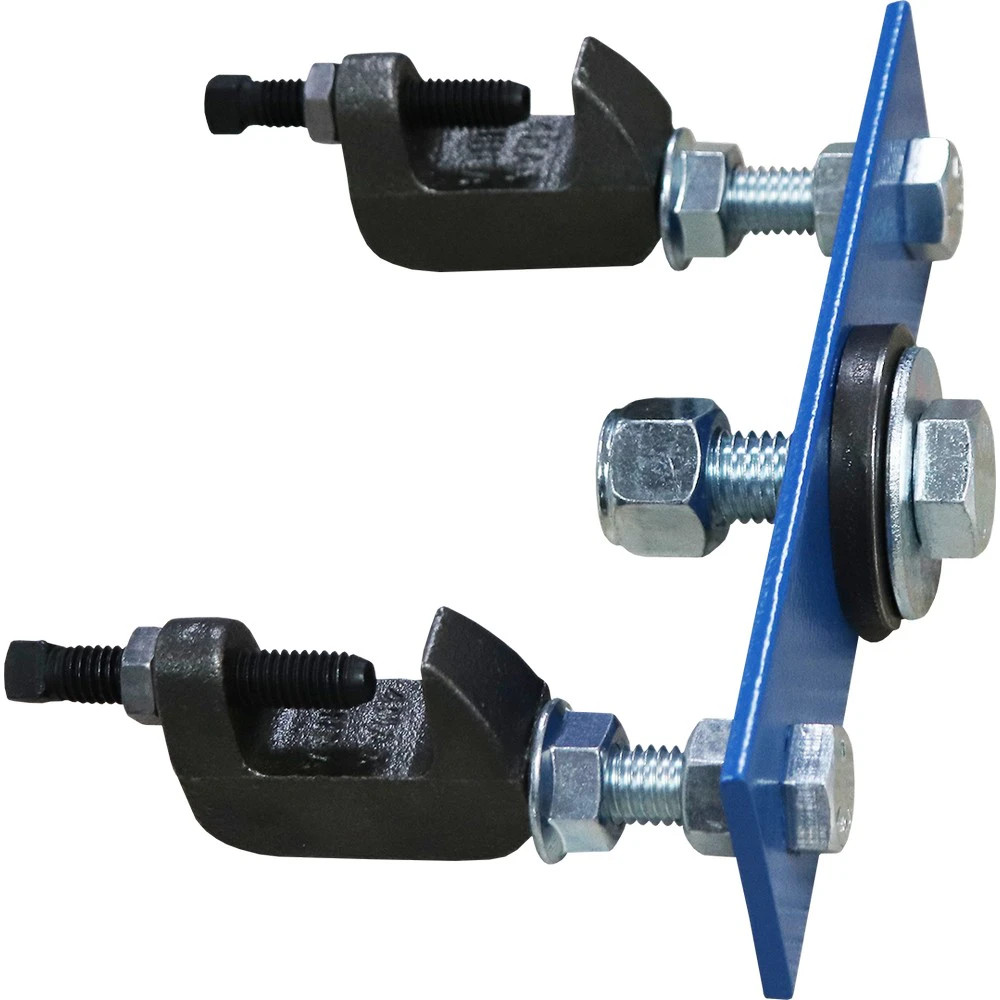

- Eight mounting options and optional oscillator kits
- Propeller:
- 26” Diameter, 3-Blade Galvalum, 18°
- Fan Inlet/Outlet:
- High-Impact Polypropylene
- Finger Guards:
- OSHA-Compliant
- Power Cord (115V Only):
- 12’ Length (Switch Optional)
- RPM:
- 1800 (standard)/ 1200 (optional)
- Decibels:
- 80.8 @ 20’ - 85.2 @ 3’ (1800)/ 75.7 @ 20' - 81.3 @ 3' (1200)
- Coverage:
- 6100 ft²
- Warranty:
- 2 Years
- CFM:
- 7650
- HP:
- 1
- Width:
- 33”
- Depth:
- 18.5”
- Air Throw:
- 150’
- Weight:
- 93 lbs
- Package Size:
- Each
